Mil Spec pin

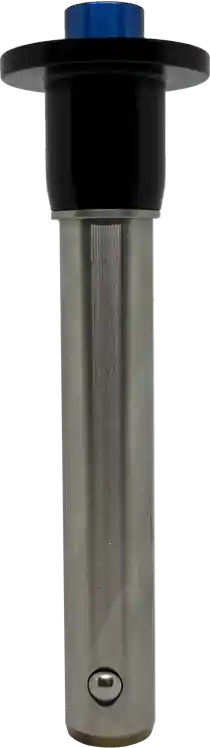

Mil Spec pin 50921C3B04 is a Push Button locking pin. It has a very long lead time, we can supply an alternative in stainless steel in 8-11 weeks: SBPBI18PB040SS
-2.jpg)
Specifications of 50921C3B04
Aviation production norm
NASM17984
Test norm of Flightpin
NAS1322
Shear resistance
5150 lbs
Tensile strength
200 lbs
.jpg)

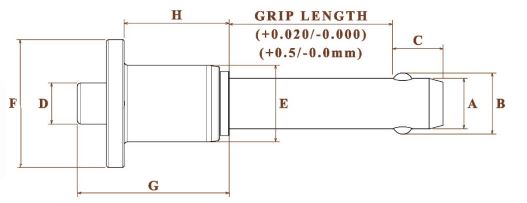

| Dimensions of 50921C3B04 (in inch) | |
|---|---|
| Diameter | 3/16 |
| Grip length | 0.4 |
| A max/min | .1870 / .1885 |
| B | .220 |
| C | .260 |
| D min / max | .250 / .310 |
| ØE min / max | .310 / .500 |
| ØF min / max | .720 / .800 |
| G max | 0.87 |
| H min | 0.48 |
We offer Mil Spec pin 50921C3B04 as factory new.
We offer a COC for Mil Spec pin 50921C3B04.
