Ball lock pin BLC8BA28S
Quick release ball lock pin BLC8BA28S is an imperial Push Button, it has a long lead time of 45+ weeks. We can also offer an alternative to BLC8BA28S which has a lead time of 8 - 11 weeks: SBPBI50PB280SS
.jpg)
.jpg)

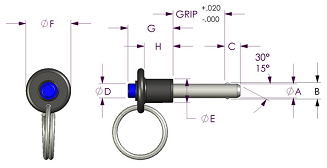

| Sizes BLC8BA28S | |
|---|---|
| ØA (inch) | 0.4985 |
| B (inch) | 0.594 |
| C (inch) | 0.46 |
| ØD (inch) Min/Max | 0.435 - 0.565 |
| ØE (inch) Min/Max | 0.600 - 0.725 |
| ØF (inch) Min/Max | 1.300 - 1.400 |
| G (inch) | 1.19 |
| H (inch) | 0.72 |
| Calculated Double Shear Strength Min. Lbs | 36800 |
| Materials BLC8BA28S | |
|---|---|
| Body | Stainless Steel |
| Handle | Aluminium |
| Button | Aluminium |
| Spindle | Stainless steel |
| Spring | Stainless steel |
| Balls | Stainless steel |
| Ring | Stainless steel |
We offer Quick release ball lock pin BLC8BA28S as factory new.
